102 Minimum Theremin Products

This product page and its links are for kits with the "REV 1" printed circuit board, sold after April 3, 2017.

(Back to Harrison Instruments' Main Page)

Assembled Item 102-KIT


The Harrison Instruments 102 Minimum Theremin Products include a kit version, Product Number 102-KIT, that contains all the
materials to construct a simple pitch-only theremin. This is a complete kit for those who want to learn basic theremin principles
while enjoying the experience of building an electronics project. The 102 is an expanded version of our popular 101 Minimum
Theremin. It features a rugged, attractive enclosure complete with a loudspeaker and plug-in plate antenna assembly.

In the tradition of all our kits, the materials provided are of the highest quality, including a durable ABS case with a laser-etched,
black anodized aluminum panel, a matching black anodized antenna, stainless steel hardware, Teflon® insulated, silver-plated hookup
wire, and a durable, glass-epoxy printed circuit board with solder masking and silk screened legends.

Component quality and comprehensive Customer Service are the key factors that make
Harrison Instruments Theremin Kits a league above competitive kits, and a pleasure to assemble.

Constructing the 102 Minimum Theremin Kit requires soldering components to a printed circuit board, soldering wires between the
printed circuit and off-board components, and mechanical assembly. We recommend this kit for builders age 16 and older who have
previous soldering experience and are familiar with electronic components and basic assembly tools.

The 102 Minimum Theremin Kit does not include tools, solder, or printed instructions.
Complete Assembly Instructions for the 102 Minimum Theremin Kit are contained on
this website (see "Assembly Instructions" link below).

Please read our Safety Precautions.

The following list summarizes all of the 102 Minimum Theremin Products. Several items are offered for builders who don't
require
the complete kit, or prefer to purchase factory-assembled versions. Refer to our detailed chart listing the contents
for each Product Number.

Product Number

Description

102-KIT -

Complete Kit with all the parts to construct a 102 Minimum Theremin

102-PCB -

Unpopulated Printed Circuit Board (PCB) without any components

102-PCBKIT1 -

Unpopulated Printed Circuit Board (PCB) with user-soldered, on-board components (no off-board components)

102-PCBKIT2 -

Unpopulated Printed Circuit Board (PCB) with user-soldered on-board and off-board components

102-ANT -

Antenna Assembly including plate, threaded mast, plug, jack, nuts, and washers

102-ENC -

Enclosure Assembly including case, front panel, antenna mounting bracket,
battery holder and all hardware

102-APCB1 -

Factory-Assembled Printed Circuit Board (PCB) with on-board components (no off-board components)

102-APCB2 -

Factory-Assembled Printed Circuit Board (PCB) with on-board components and off-board components

102-ASSEM -

Factory-Assembled 102 Minimum Theremin




Technical Information

Product Specifications
Assembly Instructions
Picture Of Musical Notes Listen to a 102 Minimum Theremin built with this Kit*
Schematic and Circuit Description
Troubleshooting Guide

*Recorded as an MP3 from the OUTPUT jack




Ordering Information

Orders are shipped with United States Post Office Priority Mail® Service which provides 2 to 3 day service to most locations.

Please note that as of January 1, 2017, Harrison Instruments will utilize eBay Global Shipping to export products outside the United States. Please direct your export inquiries to our sales department.



Our two Most Popular items are the 102-PCBKIT2 and the 99999-5977-006 Antenna Assembly

Harrison Instruments
Product Number

Description

Price
Each

Shopping Cart

102-KIT RoHS Icon
Item 102-KIT Photo Icon

Complete Kit with all the parts to construct a 102 Minimum Theremin

$249.00
102-PCB RoHS Icon

Unpopulated Printed Circuit Board (PCB) without any components

$14.25
102-PCBKIT1 RoHS Icon

Unpopulated Printed Circuit Board (PCB) with user-soldered, on-board components
(No off-board components)

$53.00
102-PCBKIT2 RoHS Icon

Most Popular
Unpopulated Printed Circuit Board (PCB) with user-soldered on-board and off-board components

$79.00
102-ANT RoHS Icon
Item 102-KIT Drawing Icon

Antenna Assembly including plate, threaded mast, plug, nuts, and washers*
(Black-anodized plate)

$59.50
99999-5977-006  RoHS Icon
Item 102-KIT Drawing Icon
Most Popular
Antenna Assembly including plate, threaded mast, plug, nuts, and washers*
(Non-anodized plate)
$18.50
102-ENC RoHS Icon

Enclosure Assembly including case, front panel, antenna mounting bracket,
battery holder and all screws, nuts, and washers

$115.00

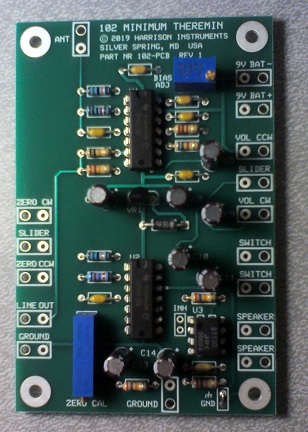

102-APCB1 RoHS Icon

Factory-assembled Printed Circuit Board (PCB) with on-board components
(No off-board components)

$95.00

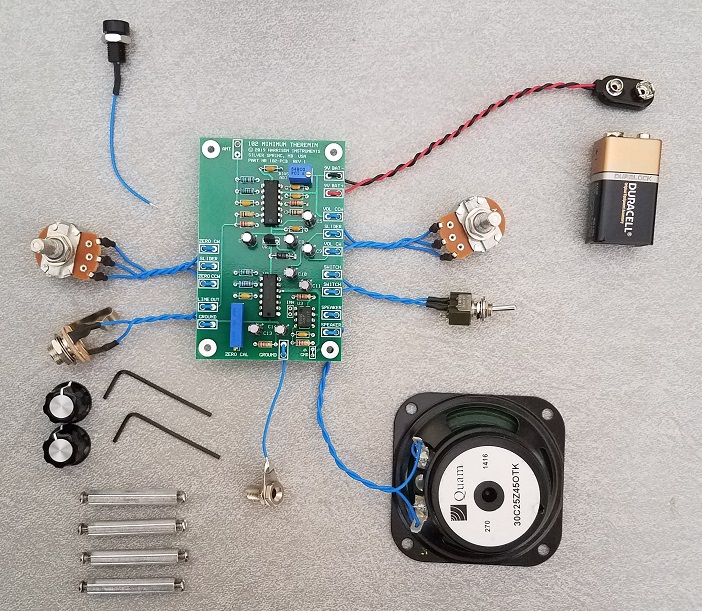

102-APCB2 RoHS Icon
Item 102-KIT Photo Icon

Factory-assembled Printed Circuit Board (PCB) with on-board components and off-board components**

$115.00

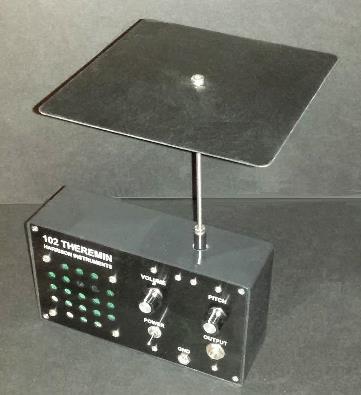

102-ASSEM RoHS Icon

Factory-assembled 102 Minimum Theremin

$299.00

*The reduced-cost non-anodized antenna assembly, 99999-5977-006, may substitute 102-ANT
**
Wire lengths are provided for compatibility with the 102-ENC Enclosure Assembly
***Harrison Instruments Two Year Product Warranty applies to 102-ASSEM
