102 Minimum Theremin Kit Products Specifications

(Back to "Technical Information")



 All components furnished in Minimum Theremin 102 Kit Products and factory-assembled versions are RoHS compliant or compliant by exemption, and applicable for export to all markets requiring RoHS compliance.

The populated printed circuit board is furnished with a trimming potentiometer ("ZERO CAL") that is user-calibrated to obtain the specified relationship of hand distance and tone frequency. The calibration procedure is described in the 102 Minimum Theremin Kit Assembly Instructions. To ensure proper calibration, this product should be used with the 102-ANT antenna assembly.




Products 102-KIT and 102-ASSEM Specifications

OVERALL DIMENSIONS (WITH ANTENNA) 10.5" H x 7.5" W x 6" D
(267mm x 190.5mm x 152.4mm)
OVERALL DIMENSIONS (WITHOUT ANTENNA) 4.38" H x 7.5" W x 2.75" D
(111.25mm x 190.5mm x 69.85mm)
WEIGHT (WITH ANTENNA) 1 LB, 5.2 OZ
(601gm)
WEIGHT (WITHOUT ANTENNA) 1 LB, 2 OZ
(510gm)
OPERATING TEMPERATURE RANGE +40F TO +90F
(+4C TO 32C)
STORAGE TEMPERATURE RANGE -10F TO +120F
(-23C TO 49C)
POWER SOURCE 9 VOLT ALKALINE BATTERY
OPERATING VOLTAGE RANGE 6 TO 12 VOLTS, D.C.
CURRENT CONSUMPTION  (MAXIMUM) 7 MILLIAMPERES @ ZERO VOLUME
17 MILLIAMPERES @ 50% VOLUME
80 MILLIAMPERES @ MAXIMUM VOLUME
PRACTICAL PITCH RANGE 100 Hz to 1600 Hz (4 OCTAVES)
LINE OUTPUT AMPLITUDE (TYPICAL) 700 mV P-P @ 100Hz TO 1KHz, TYPICAL
500 V P-P @ 3KHz, TYPICAL
LINE OUTPUT IMPEDANCE 7000 OHMS
LOUDSPEAKER IMPEDANCE 45 OHMS
REFERENCE OSCILLATOR FREQUENCY RANGE 14510 KHz to 18510 KHz
SPEAKER SOUND PRESSURE LEVEL AT 1 METER
(TYPICAL @ 440 Hz & MAXIMUM VOLUME)
75dBSPL
(0.112 Pa)



Printed Circuit Board Dimensions

PCB Dimensions




Pitch Response

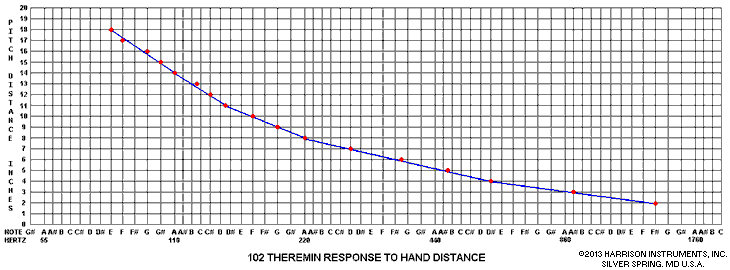

The following graph illustrates the approximate relationship of pitch and hand distance for a 102 Minimum Theremin
when constructed and calibrated as specified in the 102 Minimum Theremin Kit Assembly Instructions:


(Click graph to enlarge)
